Deployment Performance Patterns - Scaling (Up/Out)

There are below deployment patterns



1.       Performance Patterns

a.       Application Farms

b.      Web Farms

c.       Load Balancing Cluster



Consider the use of Web farms or Load Balancing Clusters, when designing a Scale Out strategy.



2.       Reliability Patterns

a.       Fail-Over Cluster



3.       Security Patterns

a.       Impersonation/Delegation

b.      Trusted Subsystem

c.       Multiple Trusted Service Identities



1). Performance Patterns:



A). WebFarm & Affinity:



A Web farm is a collection of load-balanced array of servers where each server replicate/run the same application.

A Web farm with local business logic is a common deployment pattern that places all application components—user interface components (ASP.NET pages), user process components (if used), business components, and data access components—on each Web farm servers.



A number of technologies can be used to implement the load-balancing mechanism, including

·         Hardware solutions such as those offered by Cisco and Nortel switches and routers, and

·         Software solutions such as Network Load Balancing



Requests from clients are distributed to each server in the farm, so that each has approximately the same loading.

Depending on the routing technology used, it may detect failed servers and remove them from the routing list to minimize the impact of a failure.

In simple scenarios, the routing may be on a "round robin" basis where a DNS server hands out the addresses of individual servers in rotation.



This pattern provides the highest performance, because all component calls are local, and only the databases are accessed remotely.



Figure 3 illustrates a simple Web farm where each server hosts all of the layers of the application except for the data store.



In Non-distributed Architecture - Scaling out Web servers in a Web farm





Affinity and User Sessions



Web applications often rely on the maintenance of Session State between requests from the same user.

A Web farm can be configured to route all requests from the same user to the same server – a process known as Affinity – in order to maintain state where this is stored in memory on the Web server.

However, for maximum performance and reliability, you should use a separate session state store (SqlServer/StateServer) with a Web farm, to remove the requirement for affinity.





B). Application Farms



In Distributed Deployment , where the Business & Data layer runs on different physical tiers from the Presentation layer, Application Farm is used to Scale Out the Business & Data layer.

Applications farms are conceptually similar to Web farms, but they are used to load balance requests for business components across multiple application servers.



Similar to Web-Farm,  Application-Farm is a also collection of servers where each server replicate/run the same application.

Requests from clients(presentation tier) are distributed to each server in the farm, so that each has approximately the same loading.







C). Clustering - Load Balancing Cluster



When we have multiple processors, we should have provision which can spread multiple requests coming to multiple machines.

The solution can come from a number of mechanisms, but they are all grouped under the term "load balancing."



Application/Service can be installed onto multiple servers that are configured to share the workload, as shown below.

This type of configuration is a Load-Balanced Cluster.



Two Approaches:



·         SLB - Software Load Balancer

·         Clustering



Software Load Balancer performs the following functions :



        Intercepts network-based traffic (such as web traffic) destined for a site.

        Splits the traffic into individual requests and decides which servers receive individual requests.

        Maintains a watch on the available servers, ensuring that they are responding to traffic. If they are not, they are taken out of rotation.

        Provides redundancy by employing more than one unit in a fail-over scenario.

        Offers content-aware distribution, by doing things such as reading URLs, intercepting cookies, and XML parsing.





Clustering:



Clustering offers a solution to the same problems that SLB addresses, namely high availability and scalability, but clustering goes about it differently.

Clustering is a highly involved software protocol (proprietary to each vendor) running on several servers that concentrate on taking and sharing the load.



Clustering involves a group of servers that accept traffic and divide tasks amongst themselves.

This involves a fairly tight integration of server software. This is often called load balancing



Load-balanced Servers also serve a failover function by redistributing load to the remaining servers when a server in the load-balanced cluster fails.



With clustering, there is a fairly tight integration between the servers in the cluster, with software deciding which servers handle which tasks and algorithms determining the work load and which server does which task, etc.







Load balancing Scales The Performance of server-based programs, such as a Web server, by distributing client requests across multiple servers.

Load balancing technologies, commonly referred to as Load Balancers, receive incoming requests and redirect them to a specific host if necessary.

The Load-Balanced Hosts concurrently respond to different client requests, even multiple requests from the same client.



For example, a Web browser may obtain the multiple images within a single Web page from different hosts in the cluster.

This distributes the load, speeds up processing, and shortens the response time to clients.





2). Reliability Patterns



Reliability deployment patterns represent proven design solutions to common reliability problems. The most common approach to improving the reliability of your deployment is to use a fail-over cluster to ensure the availability of your application even if a server fails.



Fail-Over Cluster



A Failover Cluster is a set of servers that are configured so that if one server becomes unavailable, another server automatically takes over for the failed server and continues processing.



Failover is a key technology behind clustering to achieve fault tolerance. By choosing another node in the cluster, the process will continue when the original node fails.

Failing over to another node can be coded explicitly or performed automatically by the underlying platform which transparently reroutes communication to another server.







Application/Service can be installed onto multiple servers that are configured to take over for one another when a failure occurs.

The process of one server taking over for a failed server is commonly known as Failover. Each server in the cluster has at least one other server in the cluster identified as its standby server.





3). Security Patterns



Security patterns represent proven design solutions to common security problems.



Impersonation and Delegation approach is a good solution when you must flow the context of the original caller to downstream layers or components in your application.
Trusted Subsystem approach is a good solution when you want to handle authentication and authorization in upstream components and access a downstream resource with a single trusted identity.



Impersonation/Delegation

In the impersonation/delegation authorization model, resources (such as tables and procedures in SQL Server) and the types of operation (such as read, write, and delete) permitted on such each resource are secured using Windows Access Control Lists (ACLs) or the equivalent security features of the targeted resource.

Users access the resources using their original identity through impersonation, as below.



The impersonation/delegation authorization model





Trusted Subsystem

In the trusted subsystem (or trusted server) model, users are partitioned into application defined, logical roles.

Members of a particular role share the same privileges within the application.

Access to operations is authorized based on the role membership of the caller.



With this role-based (or operations-based) approach to security, access to operations (not back-end resources) is authorized based on the role membership of the caller.

Roles, analyzed and defined at application design time, are used as logical containers that group together users who share the same security privileges or capabilities within the application.

The middle tier service uses a fixed identity to access downstream services and resources, as illustrated in Figure 7.







Multiple Trusted Service Identities

In some situations, you may require more than one trusted identity. For example, you may have two groups of users, one who should be authorized to perform read/write operations and the other read-only operations. The use of multiple trusted service identities provides the ability to exert more granular control over resource access and auditing, without having a large impact on scalability.







Reference: MS Patterns & Practices - Web Application Architecture Guide



Hope this helps.



Regards,

Arun Manglick



Monday, June 9, 2014

Sticky Session

An ASP.NET State is used to keep data across a sequence of user requests to the server.

This Session State is usually maintained from the first user request until a specific period after the user's last request, usually around 20 minutes.

If your application is running on only one server, you can use the standard ASP.NET Session State without any problems.



However, if you want your application to run in a server-cluster/server-farm (I.e. More than one server), then you need to make sure that either:



A.      Session State is available from all the servers in the farm (State Server / SQL Server) - Out-of-Proc Session State

B.      Use "Sticky Sessions" feature of your Load-Balancer - In-Process Session State



Both of these approaches has its own scalability problems.

Both of them force you into a Single-Point-Of-Failure scenario and they're also Not Very Scalable because all the load of accessing the Session State is shifted to one server.





Option B):



Read This - Link



In the In-Proc Session mode, the session has "affinity" with the server.  I.e. Session Id only exists in the memory of that one server to which the first request hits.

That means that if www.mydomain.com is the first server the user ever hits, the user will get an ASPSESSIONID that only exists in the memory of that one server.



To guarantee the user gets back to his/her session on the next HTTP Request (when you have more than one server), - Requires using "Sticky Connections" or Node-Affinity feature of your Load-Balancer.

I.E. if you want your application to run in a server-cluster/server-farm, then you need to make sure that you use "Sticky Sessions" feature of your load-balancer.



When you load balance your ASP.Net application(or any web application), the sticky session ensures that all the subsequent request will be send to the server who handled the first request corresponding to that request.



The problem with sticky sessions is that they limit your application scalability because the load balancer is unable to truly balance the load each time it receives request from a client.

With sticky sessions, the load balancer is forced to send all the requests to their original server where the session state was created even though that server might be heavily loaded and there might be another less-loaded server available to take on this request.



Better Solution:



The answer to all of this is to have Session State Truly Clustered. This way, it does not matter on which server the session was actually created because the session lives in the entire cluster.

The user request can then be forwarded by the load-balancer to the most appropriate server. This approach is also highly scalable and there is no single point of failure.

Sticky sessions work with the load balancer to improve efficiency of Persistent Sessions in a clustered configuration. In a clustered configuration, the load balancer sends requests to multiple backend Resin servers. Each session has an owning Resin server and a backup Resin server. The load balancer will send a session's request to the owning server or to the backup if the owning server is not available.

The association of a session with a backend server is called "Sticky Sessions".



Because the load balancing occurs before any interpretation of the Virtual Host or Web Application, it's a <server> configuration variable, with the <session-cookie> tag.



Reference: Link



Thanks & Regards,

Arun Manglick,

Project Manager - Forecasting
Mobile
: 9158041782| 9850901262| Desk Phone: +912040265348 | http://www.synechron.com

SYNECHRON -
- 4,000+ professionals globally.
- USA | Canada | UK | The Netherlands | UAE | India | Singapore | Hong Kong | Japan



Friday, June 6, 2014

OOPs Concepts

Presentation: D:\Arun.Manglick.EDU\DIPL\Presentation\20. Object-Oriented-Programming-Principles.pptx

  • 1. Introduction
  • 2. Background
  • 3. Prerequisites
  • 4. The Main Content
    • 4.1. What is Software Architecture?
    • 4.2. Why Architecture is important?
    • 4.3. What is OOP?
    • 4.4. What is an Object?
    • 4.5. What is a Class?
    • 4.6. How to identify and design a Class?
    • 4.7. What is Encapsulation (or information hiding)?
    • 4.8. What is Association?
    • 4.9. What is the difference between Association, Aggregation and Composition?
    • 4.10. What is Abstraction and Generalization?
    • 4.11. What is an Abstract class?
    • 4.12. What is an Interface?
    • 4.13. What is the difference between a Class and an Interface?
    • 4.14. What is the difference between an Interface and an Abstract class?
    • 4.15. What is Implicit and Explicit Interface Implementations?
    • 4.16. What is Inheritance?  Generalization and Specialization
    • 4.17. What is Polymorphism?
    • 4.18. What is Method Overloading?
    • 4.19. What is Operator overloading?
    • 4.20. What is Method Overriding?
    • 4.21. What is a Use case?
    • 4.22. What is a Class Diagram?
    • 4.23. What is a Package Diagram?
    • 4.24. What is a Sequence Diagram?
    • 4.25. What is two-tier architecture?
    • 4.26. What is three-tier architecture?
    • 4.27. What is MVC architecture?
    • 4.28. What is SOA?
    • 4.29. What is the Data Access Layer?
    • 4.30. What is the Business Logic Layer?
    • 4.31. What is Gang of Four (GoF) Design Patterns?
    • 4.32. What is the difference between Abstract Factory and Builder design patterns?

1. Introduction

I have noticed an increase in the number of articles published in the Architect category in code-project during the last few months. The number of readers for most of these articles is also high, though the ratings for the articles are not. This indicates that readers are interested in reading articles on Architecture, but the quality does not match their expectations. This article is a constructive attempt to group/ define/ explain all introductory concepts of software architecture for well seasoned developers who are looking to take their next step as system architects.

Coming back to the initial point, I noticed that there is a knowledge gap, increasing every day, between the architects who know how to architect a system properly and the others who do not know. The ones, who know, know it right. But the ones, who do not know, know nothing. Just like the world’s wealth distribution, it is an unbalanced distribution of knowledge.

2. Background

This article began after reading and hearing the questions new developers have, on basics of software architecture. There are some good articles out there, but still developers struggle to understand the basic concepts, and more importantly, the way to apply them correctly.

3. Prerequisites

This article is an effort to provide an accurate information pool for new developers on the basics of software architecture, focusing on Object Oriented Programming (OOP). If you are a developer, who has a minimum of three or more years of continuous development experience and has that hunger to learn more, to step-in to the next level to become a software architect, this article is for you.

4. The Main Content

4.1. What is Software Architecture?

Software Architecture is defined to be the rules, heuristics and patterns governing:

  • Partitioning the problem and the system to be built into discrete pieces
  • Techniques used to create interfaces between these pieces
  • Techniques used to manage overall structure and flow
  • Techniques used to interface the system to its environment
  • Appropriate use of development and delivery approaches, techniques and tools.

4.2. Why Architecture is important?

The primary goal of software architecture is to define the non-functional requirements of a system and define the environment. The detailed design is followed by a definition of how to deliver the functional behavior within the architectural rules. Architecture is important because it:

  • Controls complexity
  • Enforces best practices
  • Gives consistency and uniformity
  • Increases predictability
  • Enables re-use.

4.3. What is OOP?

OOP is a design philosophy. It stands for Object Oriented Programming. Object-Oriented Programming (OOP) uses a different set of programming languages than old procedural programming languages (C, Pascal, etc.). Everything in OOP is grouped as self sustainable "objects". Hence, you gain re-usability by means of four main object-oriented programming concepts.

In order to clearly understand the object orientation, let’s take your “hand” as an example. The “hand” is a class. Your body has two objects of type hand, named left hand and right hand. Their main functions are controlled/ managed by a set of electrical signals sent through your shoulders (through an interface). So the shoulder is an interface which your body uses to interact with your hands. The hand is a well architected class. The hand is being re-used to create the left hand and the right hand by slightly changing the properties of it.

4.4. What is an Object?

An object can be considered a "thing" that can perform a set of related activities. The set of activities that the object performs defines the object's behavior. For example, the hand can grip something or a Student (object) can give the name or address.

In pure OOP terms an object is an instance of a class.

4.5. What is a Class?

A class is simply a representation of a type of object. It is the blueprint/ plan/ template that describe the details of an object. A class is the blueprint from which the individual objects are created. Class is composed of three things: a name, attributes, and operations.

Collapse | Copy Code

public class Student
{
}

According to the sample given below we can say that the student object, named objectStudent, has created out of the Student class.

Collapse | Copy Code

Student objectStudent = new Student();

In real world, you'll often find many individual objects all of the same kind. As an example, there may be thousands of other bicycles in existence, all of the same make and model. Each bicycle has built from the same blueprint. In object-oriented terms, we say that the bicycle is an instance of the class of objects known as bicycles.

In the software world, though you may not have realized it, you have already used classes. For example, the TextBox control, you always used, is made out of the TextBox class, which defines its appearance and capabilities. Each time you drag a TextBox control, you are actually creating a new instance of the TextBox class.

4.6. How to identify and design a Class?

This is an art; each designer uses different techniques to identify classes. However according to Object Oriented Design Principles, there are five principles that you must follow when design a class,

  • SRP - The Single Responsibility Principle -
    A class should have one, and only one, reason to change.
  • OCP - The Open Closed Principle -
    You should be able to extend a classes behavior, without modifying it.
  • LSP - The Liskov Substitution Principle-
    Derived classes must be substitutable for their base classes.
  • DIP - The Dependency Inversion Principle-
    Depend on abstractions, not on concretions.
  • ISP - The Interface Segregation Principle-
    Make fine grained interfaces that are client specific.

For more information on design principles, please refer to Object Mentor. Or Chasing Architect Path

Additionally to identify a class correctly, you need to identify the full list of leaf level functions/ operations of the system (granular level use cases of the system). Then you can proceed to group each function to form classes (classes will group same types of functions/ operations). However a well defined class must be a meaningful grouping of a set of functions and should support the re-usability while increasing expandability/ maintainability of the overall system.

In software world the concept of dividing and conquering is always recommended, if you start analyzing a full system at the start, you will find it harder to manage. So the better approach is to identify the module of the system first and then dig deep in to each module separately to seek out classes.

A software system may consist of many classes. But in any case, when you have many, it needs to be managed. Think of a big organization, with its work force exceeding several thousand employees (let’s take one employee as a one class). In order to manage such a work force, you need to have proper management policies in place. Same technique can be applies to manage classes of your software system as well. In order to manage the classes of a software system, and to reduce the complexity, the system designers use several techniques, which can be grouped under four main concepts named Encapsulation, Abstraction, Inheritance, and Polymorphism. These concepts are the four main gods of OOP world and in software term, they are called four main Object Oriented Programming (OOP) Concepts.

4.7. What is Encapsulation (or information hiding)?

The encapsulation is the inclusion within a program object of all the resources need for the object to function - basically, the methods and the data. In OOP the encapsulation is mainly achieved by creating classes, the classes expose public methods and properties. The class is kind of a container or capsule or a cell, which encapsulate the set of methods, attribute and properties to provide its indented functionalities to other classes. In that sense, encapsulation also allows a class to change its internal implementation without hurting the overall functioning of the system. That idea of encapsulation is to hide how a class does it but to allow requesting what to do.

In order to modularize/ define the functionality of a one class, that class can uses functions/ properties exposed by another class in many different ways. According to Object Oriented Programming there are several techniques, classes can use to link with each other and they are named association, aggregation, and composition.

There are several other ways that an encapsulation can be used, as an example we can take the usage of an interface. The interface can be used to hide the information of an implemented class.

Collapse | Copy Code

IStudent myStudent = new LocalStudent();
IStudent myStudent = new ForeignStudent();

According to the sample above (let’s assume that LocalStudent and ForeignStudent are implemented by the IStudent interface) we can see how LocalStudent and ForeignStudent are hiding their, localize implementing information through the IStudent interface.

4.8. What is Association?

Association is a (*a*) relationship between two classes. It allows one object instance to cause another to perform an action on its behalf. Association is the more general term that define the relationship between two classes, where as the aggregation and composition are relatively special.

Collapse | Copy Code

public class StudentRegistrar
{
    public StudentRegistrar ();
    {
        new RecordManager().Initialize();
    }
}

In this case we can say that there is an association between StudentRegistrar and RecordManager or there is a directional association from StudentRegistrar to RecordManager or StudentRegistrar use a (*Use*) RecordManager. Since a direction is explicitly specified, in this case the controller class is the StudentRegistrar.

To some beginners, association is a confusing concept. The troubles created not only by the association alone, but with two other OOP concepts, that is association, aggregation and composition. Every one understands association, before aggregation and composition are described. The aggregation or composition cannot be separately understood. If you understand the aggregation alone it will crack the definition given for association, and if you try to understand the composition alone it will always threaten the definition given for aggregation, all three concepts are closely related, hence must study together, by comparing one definition to another. Let’s explore all three and see whether we can understand the differences between these useful concepts.

4.9. What is the difference between Association, Aggregation and Composition?

Association is a (*a*) relationship between two classes, where one class use another. But aggregation describes a special type of an association. Aggregation is the (*the*) relationship between two classes. When object of one class has an (*has*) object of another, if second is a part of first (containment relationship) then we called that there is an aggregation between two classes. Unlike association, aggregation always insists a direction.



Composition known as a “has-a relationship.



Collapse | Copy Code

public class University
{
    private Chancellor  universityChancellor = new Chancellor();
}

In this case I can say that University aggregate Chancellor or University has an (*has-a*) Chancellor. But even without a Chancellor a University can exists. But the Faculties cannot exist without the University, the life time of a Faculty (or Faculties) attached with the life time of the University . If University is disposed the Faculties will not exist. In that case we called that University is composed of Faculties. So that composition can be recognized as a special type of an aggregation.

Same way, as another example, you can say that, there is a composite relationship in-between a KeyValuePairCollection and a KeyValuePair. The two mutually depend on each other.

.Net and Java uses the Composite relation to define their Collections. I have seen Composition is being used in many other ways too. However the more important factor, that most people forget is the life time factor. The life time of the two classes that has bond with a composite relation mutually depend on each other. If you take the .net Collection to understand this, there you have the Collection Element define inside (it is an inner part, hence called it is composed of) the Collection, forcing the Element to get disposed with the Collection. If not, as an example, if you define the Collection and it’s Element to be independent, then the relationship would be more of a type Aggregation, than a Composition. So the point is, if you want to bind two classes with Composite relation, more accurate way is to have a one define inside the other class (making it a protected or private class). This way you are allowing the outer class to fulfill its purpose, while tying the lifetime of the inner class with the outer class.

So in summary, we can say that aggregation is a special kind of an association and composition is a special kind of an aggregation. (Association->Aggregation->Composition)

ASSOCIATION

The software firm may have external caterers serving food to the employees. These caterers are NOT PART OF the firm. However, they are ASSOCIATED with the firm. The caterers can exist even if our software firm is closed down. They may serve another firm! Thus the lifetime of caterers is not governed by the lifetime of the software firm. This is typical ASSOCIATION

AGGREGATION

Consider a Car manufacturing unit. We can think of Car as a whole entity and Car Wheel as part of the Car. (at this point, it may look like composition..hold on) The wheel can be created weeks ahead of time, and it can sit in a warehouse before being placed on a car during assembly. In this example, the Wheel class's instance clearly lives independently of the Car class's instance. Thus, unlike composition, in aggregation, life cycles of the objects involved are not tightly coupled.



public class Wheel
{
 . . .
}

public class Car

{

     private Wheel wheel;

     public Person(Wheel wheel)

     {

         this. wheel = wheel;

     }

     . . .

}



Car would then be used as follows:



Wheel wheel = new Wheel ();
Car car = new Car (wheel);



As you can see, Car does not manage the lifetime of Wheel. If Car object is destroyed, the Wheel object still exists.

COMPOSITION

Imagine a software firm that is composed of different Business Units (or departments) like Storage BU, Networking BU. Automobile BU. The life time of these Business Units is governed by the lifetime of the organization. In other words, these Business Units cannot exist independently without the firm. This is COMPOSITION. (Ie the firm is COMPOSED OF business units)

public class Department
{
 . . .
}

public class Firm

{

    Department d = new Department ();

    .......

}

Here you can see, Firm manages the life time of Department. Firm object dies, Department object will automatically die.

4.10. What is Abstraction and Generalization?

Abstraction is an emphasis on the idea, qualities and properties rather than the particulars (a suppression of detail). The importance of abstraction is derived from its ability to hide irrelevant details and from the use of names to reference objects. Abstraction is essential in the construction of programs. It places the emphasis on what an object is or does rather than how it is represented or how it works. Thus, it is the primary means of managing complexity in large programs.

While abstraction reduces complexity by hiding irrelevant detail, generalization reduces complexity by replacing multiple entities which perform similar functions with a single construct. Generalization is the broadening of application to encompass a larger domain of objects of the same or different type. Programming languages provide generalization through variables, parameterization, generics and polymorphism. It places the emphasis on the similarities between objects. Thus, it helps to manage complexity by collecting individuals into groups and providing a representative which can be used to specify any individual of the group.

Abstraction and generalization are often used together. Abstracts are generalized through parameterization to provide greater utility. In parameterization, one or more parts of an entity are replaced with a name which is new to the entity. The name is used as a parameter. When the parameterized abstract is invoked, it is invoked with a binding of the parameter to an argument.

4.10. What is Generalization & Specialization?

Generalization is closely related with Abstraction, the Specialization is closely related with Inheritance. It is important to discuss those two concepts together with generalization to better understand and to reduce the complexity.

One of the most important relationships among objects in the real world is specialization, which can be described as the “is-a” relationship. When we say that a dog is a mammal, we mean that the dog is a specialized kind of mammal. It has all the characteristics of any mammal (it bears live young, nurses with milk, has hair), but it specializes these characteristics to the familiar characteristics of canis domesticus. A cat is also a mammal. As such, we expect it to share certain characteristics with the dog that are generalized in Mammal, but to differ in those characteristics that are specialized in cats.

The specialization and generalization relationships are both reciprocal and hierarchical. Specialization is just the other side of the generalization coin: Mammal generalizes what is common between dogs and cats, and dogs and cats specialize mammals to their own specific subtypes.

Similarly, as an example you can say that both IOException and SecurityException are of type Exception. They have all characteristics and behaviors of an Exception, That mean the IOException is a specialized kind of Exception. A SecurityException is also an Exception. As such, we expect it to share certain characteristic with IOException that are generalized in Exception, but to differ in those characteristics that are specialized in SecurityExceptions. In other words, Exception generalizes the shared characteristics of both IOException and SecurityException, while IOException and SecurityException specialize with their characteristics and behaviors.

In OOP, the specialization relationship is implemented using the principle called inheritance. This is the most common and most natural and widely accepted way of implement this relationship.

4.11. What is an Abstract class?

Abstract classes, which declared with the abstract keyword, cannot be instantiated. It can only be used as a super-class for other classes that extend the abstract class. Abstract class is the concept and implementation gets completed when it is being realized by a subclass. In addition to this a class can inherit only from one abstract class (but a class may implement many interfaces) and must override all its abstract methods/ properties and may override virtual methods/ properties.

Abstract classes are ideal when implementing frameworks. As an example, let’s study the abstract class named LoggerBase below. Please carefully read the comments as it will help you to understand the reasoning behind this code.

Collapse | Copy Code

public abstract class LoggerBase
{
    /// <summary>
    /// field is private, so it intend to use inside the class only
    /// </summary>
    private log4net.ILog logger = null;

    /// <summary>
    /// protected, so it only visible for inherited class
    /// </summary>
    protected LoggerBase()
    {
        // The private object is created inside the constructor
        logger = log4net.LogManager.GetLogger(this.LogPrefix);
        // The additional initialization is done immediately after
        log4net.Config.DOMConfigurator.Configure();
    }

    /// <summary>
    /// When you define the property as abstract,
    /// it forces the inherited class to override the LogPrefix
    /// So, with the help of this technique the log can be made,
    /// inside the abstract class itself, irrespective of it origin.
    /// If you study carefully you will find a reason for not to have “set” method here.
    /// </summary>
    protected abstract System.Type LogPrefix
    {
        get;
    }

    /// <summary>
    /// Simple log method,
    /// which is only visible for inherited classes
    /// </summary>
    /// <param name="message"></param>
    protected void LogError(string message)
    {
        if (this.logger.IsErrorEnabled)
        {
            this.logger.Error(message);
        }
    }

    /// <summary>
    /// Public properties which exposes to inherited class
    /// and all other classes that have access to inherited class
    /// </summary>
    public bool IsThisLogError
    {
        get
        {
            return this.logger.IsErrorEnabled;
        }
    }
}

The idea of having this class as an abstract is to define a framework for exception logging. This class will allow all subclass to gain access to a common exception logging module and will facilitate to easily replace the logging library. By the time you define the LoggerBase, you wouldn’t have an idea about other modules of the system. But you do have a concept in mind and that is, if a class is going to log an exception, they have to inherit the LoggerBase. In other word the LoggerBase provide a framework for exception logging.

Let’s try to understand each line of the above code.

·         Like any other class, an abstract class can contain fields, hence I used a private field named logger declare the ILog interface of the famous log4net library. This will allow the Loggerbase class to control, what to use, for logging, hence, will allow changing the source logger library easily.

·         The access modifier of the constructor of the LoggerBase is protected. The public constructor has no use when the class is of type abstract. The abstract classes are not allowed to instantiate the class. So I went for the protected constructor.

·         The abstract property named LogPrefix is an important one. It enforces and guarantees to have a value for LogPrefix (LogPrefix uses to obtain the detail of the source class, which the exception has occurred) for every subclass, before they invoke a method to log an error.

·         The method named LogError is protected, hence exposed to all subclasses. You are not allowed or rather you cannot make it public, as any class, without inheriting the LoggerBase cannot use it meaningfully.

·         Let’s find out why the property named IsThisLogError is public. It may be important/ useful for other associated classes of an inherited class to know whether the associated member logs its errors or not.

·         Apart from these you can also have virtual methods defined in an abstract class. The virtual method may have its default implementation, where a subclass can override it when required.



All and all, the important factor here is that all OOP concepts should be used carefully with reasons, you should be able to logically explain, why you make a property a public or a field a private or a class an abstract. Additionally, when architecting frameworks, the OOP concepts can be used to forcefully guide the system to be developed in the way framework architect’s wanted it to be architected initially.

4.12. What is an Interface?

In summary the Interface separates the implementation and defines the structure, and this concept is very useful in cases where you need the implementation to be interchangeable. Apart from that an interface is very useful when the implementation changes frequently. Some say you should define all classes in terms of interfaces, but I think recommendation seems a bit extreme.

Interface can be used to define a generic template and then one or more abstract classes to define partial implementations of the interface. Interfaces just specify the method declaration (implicitly public and abstract) and can contain properties (which are also implicitly public and abstract). Interface definition begins with the keyword interface. An interface like that of an abstract class cannot be instantiated.

If a class that implements an interface does not define all the methods of the interface, then it must be declared abstract and the method definitions must be provided by the subclass that extends the abstract class. In addition to this an interfaces can inherit other interfaces.

The sample below will provide an interface for our LoggerBase abstract class.

Collapse | Copy Code

public interface ILogger
{
    bool IsThisLogError { get; }
}

4.13. What is the difference between a Class and an Interface?

In .Net/ C# a class can be defined to implement an interface and also it supports multiple implementations. When a class implements an interface, an object of such class can be encapsulated inside an interface.

If MyLogger is a class, which implements ILogger, there we can write

Collapse | Copy Code

ILogger log = new MyLogger();

A class and an interface are two different types (conceptually). Theoretically a class emphasis the idea of encapsulation, while an interface emphasis the idea of abstraction (by suppressing the details of the implementation). The two poses a clear separation from one to another. Therefore it is very difficult or rather impossible to have an effective meaningful comparison between the two, but it is very useful and also meaningful to have a comparison between an interface and an abstract class.

4.14. What is the difference between an Interface and an Abstract class?

There are quite a big difference between an interface and an abstract class, even though both look similar.

    • Interface definition begins with a keyword interface so it is of type interface
    • Abstract classes are declared with the abstract keyword so it is of type class
    • Interface has no implementation, but they have to be implemented.
    • Abstract class’s methods can have implementations and they have to be extended.
    • Interfaces can only have method declaration (implicitly public and abstract) and fields (implicitly public static)
    • Abstract class’s methods can’t have implementation only when declared abstract.
    • Interface can inherit more than one interfaces
    • Abstract class can implement more than one interfaces, but can inherit only one class
    • Abstract class must override all abstract method and may override virtual methods
    • Interface can be used when the implementation is changing
    • Abstract class can be used to provide some default behavior for a base class.
    • Interface makes implementation interchangeable
    • Interface increase security by hiding the implementation
    • Abstract class can be used when implementing framework
    • Abstract classes are an excellent way to create planned inheritance hierarchies and also to use as non-leaf classes in class hierarchies.

Abstract classes let you define some behaviors; they force your subclasses to provide others. For example, if you have an application framework, an abstract class can be used to provide the default implementation of the services and all mandatory modules such as event logging and message handling etc. This approach allows the developers to develop the application within the guided help provided by the framework.

However, in practice when you come across with some application-specific functionality that only your application can perform, such as startup and shutdown tasks etc. The abstract base class can declare virtual shutdown and startup methods. The base class knows that it needs those methods, but an abstract class lets your class admit that it doesn't know how to perform those actions; it only knows that it must initiate the actions. When it is time to start up, the abstract class can call the startup method. When the base class calls this method, it can execute the method defined by the child class.

4.15. What is Implicit and Explicit Interface Implementations?

As mentioned before .Net support multiple implementations, the concept of implicit and explicit implementation provide safe way to implement methods of multiple interfaces by hiding, exposing or preserving identities of each of interface methods, even when the method signatures are the same.

Let's consider the interfaces defined below.

Collapse | Copy Code

interface IDisposable
{
    void Dispose();

Here you can see that the class Student has implicitly and explicitly implemented the method named Dispose() via Dispose and IDisposable.Dispose.

Collapse | Copy Code

class Student : IDisposable
{
    public void Dispose()
    {
        Console.WriteLine("Student.Dispose");
    }

    void IDisposable.Dispose()
    {
        Console.WriteLine("IDisposable.Dispose");
    }

4.16. What is Inheritance?  Generalization and Specialization

Ability of a new class to be created, from an existing class by extending it, is called inheritance.

Collapse | Copy Code

public class Exception
{
}


public class IOException : Exception
{
}

According to the above example the new class (IOException), which is called the derived class or subclass, inherits the members of an existing class (Exception), which is called the base class or super-class. The class IOException can extend the functionality of the class Exception by adding new types and methods and by overriding existing ones.

Just like abstraction is closely related with generalization, the inheritance is closely related with specialization. It is important to discuss those two concepts together with generalization to better understand and to reduce the complexity.

One of the most important relationships among objects in the real world is specialization, which can be described as the “is-a” relationship. When we say that a dog is a mammal, we mean that the dog is a specialized kind of mammal. It has all the characteristics of any mammal (it bears live young, nurses with milk, has hair), but it specializes these characteristics to the familiar characteristics of canis domesticus. A cat is also a mammal. As such, we expect it to share certain characteristics with the dog that are generalized in Mammal, but to differ in those characteristics that are specialized in cats.

The specialization and generalization relationships are both reciprocal and hierarchical. Specialization is just the other side of the generalization coin: Mammal generalizes what is common between dogs and cats, and dogs and cats specialize mammals to their own specific subtypes.

Similarly, as an example you can say that both IOException and SecurityException are of type Exception. They have all characteristics and behaviors of an Exception, That mean the IOException is a specialized kind of Exception. A SecurityException is also an Exception. As such, we expect it to share certain characteristic with IOException that are generalized in Exception, but to differ in those characteristics that are specialized in SecurityExceptions. In other words, Exception generalizes the shared characteristics of both IOException and SecurityException, while IOException and SecurityException specialize with their characteristics and behaviors.

In OOP, the specialization relationship is implemented using the principle called inheritance. This is the most common and most natural and widely accepted way of implement this relationship.

4.17. What is Polymorphisms?

Polymorphisms is a generic term that means 'many shapes'. More precisely Polymorphisms means the ability to request that the same operations be performed by a wide range of different types of things.

At times, I used to think that understanding Object Oriented Programming concepts have made it difficult since they have grouped under four main concepts, while each concept is closely related with one another. Hence one has to be extremely careful to correctly understand each concept separately, while understanding the way each related with other concepts.

In OOP the polymorphisms is achieved by using many different techniques named method overloading, operator overloading and method overriding,

4.18. What is Method Overloading?

The method overloading is the ability to define several methods all with the same name.

Collapse | Copy Code

public class MyLogger
{
    public void LogError(Exception e)
    {
        // Implementation goes here
    }

    public bool LogError(Exception e, string message)
    {
        // Implementation goes here
    }
}

4.19. What is Operator Overloading?

The operator overloading (less commonly known as ad-hoc polymorphisms) is a specific case of polymorphisms in which some or all of operators like +, - or == are treated as polymorphic functions and as such have different behaviors depending on the types of its arguments.

Collapse | Copy Code

public class Complex
{
    private int real;
    public int Real
    { get { return real; } }

    private int imaginary;
    public int Imaginary
    { get { return imaginary; } }

    public Complex(int real, int imaginary)
    {
        this.real = real;
        this.imaginary = imaginary;
    }

    public static Complex operator +(Complex c1, Complex c2)
    {
        return new Complex(c1.Real + c2.Real, c1.Imaginary + c2.Imaginary);
    }
}

I above example I have overloaded the plus operator for adding two complex numbers. There the two properties named Real and Imaginary has been declared exposing only the required “get” method, while the object’s constructor is demanding for mandatory real and imaginary values with the user defined constructor of the class.

4.20. What is Method Overriding?

Method overriding is a language feature that allows a subclass to override a specific implementation of a method that is already provided by one of its super-classes.

A subclass can give its own definition of methods but need to have the same signature as the method in its super-class. This means that when overriding a method the subclass's method has to have the same name and parameter list as the super-class's overridden method.

Collapse | Copy Code

using System;
public class Complex
{
    private int real;
    public int Real
    { get { return real; } }

    private int imaginary;
    public int Imaginary
    { get { return imaginary; } }

    public Complex(int real, int imaginary)
    {
        this.real = real;
        this.imaginary = imaginary;
    }

    public static Complex operator +(Complex c1, Complex c2)
    {
        return new Complex(c1.Real + c2.Real, c1.Imaginary + c2.Imaginary);
    }

    public override string ToString()
    {
        return (String.Format("{0} + {1}i", real, imaginary));
    }
}

In above example I have extended the implementation of the sample Complex class given under operator overloading section. This class has one overridden method named “ToString”, which override the default implementation of the standard “ToString” method to support the correct string conversion of a complex number.

Collapse | Copy Code

Complex num1 = new Complex(5, 7);
Complex num2 = new Complex(3, 8);

// Add two Complex numbers using the
// overloaded plus operator
Complex sum = num1 + num2;

// Print the numbers and the sum
// using the overriden ToString method
Console.WriteLine("({0}) + ({1}) = {2}", num1, num2, sum);
Console.ReadLine();


4.21. What is a Use case?

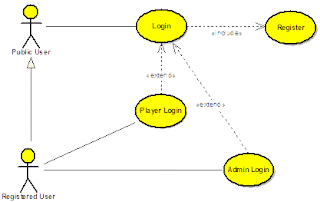

A use case is a thing an actor perceives from the system. A use case maps actors with functions. Importantly, the actors need not be people. As an example a system can perform the role of an actor, when it communicate with another system.

In another angle a use case encodes a typical user interaction with the system. In particular, it:

  • Captures some user-visible function.
  • Achieves some concrete goal for the user.

A complete set of use cases largely defines the requirements for your system: everything the user can see, and would like to do. The below diagram contains a set of use cases that describes a simple login module of a gaming website.

4.22. What is a Class Diagram?

A class diagrams are widely used to describe the types of objects in a system and their relationships. Class diagrams model class structure and contents using design elements such as classes, packages and objects. Class diagrams describe three different perspectives when designing a system, conceptual, specification, and implementation. These perspectives become evident as the diagram is created and help solidify the design.

The Class diagrams, physical data models, along with the system overview diagram are in my opinion the most important diagrams that suite the current day rapid application development requirements.

UML Notations:

4.23. What is a Package Diagram?

Package diagrams are used to reflect the organization of packages and their elements. When used to represent class elements, package diagrams provide a visualization of the name-spaces. In my designs, I use the package diagrams to organize classes in to different modules of the system.

4.24. What is a Sequence Diagram?

A sequence diagrams model the flow of logic within a system in a visual manner, it enable both to document and validate your logic, and are used for both analysis and design purposes. Sequence diagrams are the most popular UML artifact for dynamic modeling, which focuses on identifying the behavior within your system.

4.25. What is two-tier architecture?

The two-tier architecture is refers to client/ server architectures as well, the term client/ server was first used in the 1980s in reference to personal computers (PCs) on a network. The actual client/ server model started gaining acceptance in the late 1980s, and later it was adapted to World Wide Web programming.

According to the modern days use of two-tier architecture the user interfaces (or with ASP.NET, all web pages) runs on the client and the database is stored on the server. The actual application logic can run on either the client or the server. So in this case the user interfaces are directly access the database. Those can also be non-interface processing engines, which provide solutions to other remote/ local systems. In either case, today the two-tier model is not as reputed as the three-tier model. The advantage of the two-tier design is its simplicity, but the simplicity comes with the cost of scalability. The newer three-tier architecture, which is more famous, introduces a middle tier for the application logic.

4.26. What is three-tier architecture?

The three tier software architecture (also known as three layer architectures) emerged in the 1990s to overcome the limitations of the two tier architecture. This architecture has aggressively customized and adopted by modern day system designer to web systems.

Three-tier is a client-server architecture in which the user interface, functional process logic, data storage and data access are developed and maintained as independent modules, some time on separate platforms. The term "three-tier" or "three-layer", as well as the concept of multi-tier architectures (often refers to as three-tier architecture), seems to have originated within Rational Software.

The 3-Tier architecture has the following three tiers.

  1. Presentation Tier or Web Server: User Interface, displaying/ accepting data/ input to/ from the user
  2. Application Logic/ Business Logic/ Transaction Tier or Application Server: Data validation, acceptability check before being added to the database and all other business/ application specific operations
  3. Data Tier or Database server: Simple reading and writing method to database or any other storage, connection, command, stored procedures etc

4.27. What is MVC architecture?

The Model-View-Controller (MVC) architecture separates the modeling of the domain, the presentation, and the actions based on user input into three separate classes.

Unfortunately, the popularity of this pattern has resulted in a number of faulty usages; each technology (Java, ASP.NET etc) has defined it in their own way making it difficult to understand. In particular, the term "controller" has been used to mean different things in different contexts. The definitions given bellow are the closes possible ones I found for ASP.NET version of MVC.

  1. Model: DataSet and typed DataSet (some times business object, object collection, XML etc) are the most common use of the model.
  2. View: The ASPX and ASCX files generally handle the responsibilities of the view.
  3. Controllers: The handling of events or the controlling is usually done in the code-behind class.

In a complex n-tier distributed system the MVC architecture place the vital role of organizing the presentation tier of the system.

4.28. What is SOA?

A service-oriented architecture is essentially a collection of services. These services communicate with each other. The communication can involve either simple data passing or it could involve two or more services coordinating some activity. Some means of connecting services to each other is needed.

The .Net technology introduces the SOA by mean of web services.

The SOA can be used as the concept to connect multiple systems to provide services. It has it's great share in the future of the IT world.

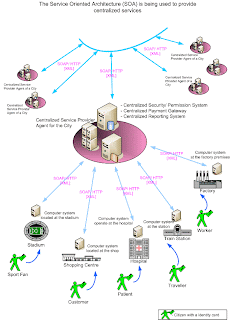

According to the imaginary diagram above, we can see how the Service Oriented Architecture is being used to provide a set of centralized services to the citizens of a country. The citizens are given a unique identifying card, where that card carries all personal information of each citizen. Each service centers such as shopping complex, hospital, station, and factory are equipped with a computer system where that system is connected to a central server, which is responsible of providing service to a city. As an example when a customer enter the shopping complex the regional computer system report it to the central server and obtain information about the customer before providing access to the premises. The system welcomes the customer. The customer finished the shopping and then by the time he leaves the shopping complex, he will be asked to go through a billing process, where the regional computer system will manage the process. The payment will be automatically handled with the input details obtain from the customer identifying card.

The regional system will report to the city (computer system of the city) while the city will report to the country (computer system of the country).

4.29. What is the Data Access Layer?

The data access layer (DAL), which is a key part of every n-tier system, is mainly consist of a simple set of code that does basic interactions with the database or any other storage device. These functionalities are often referred to as CRUD (Create, Retrieve, Update, and Delete).

The data access layer need to be generic, simple, quick and efficient as much as possible. It should not include complex application/ business logics.

I have seen systems with lengthy, complex store procedures (SP), which run through several cases before doing a simple retrieval. They contain not only most part of the business logic, but application logic and user interface logic as well. If SP is getting longer and complicated, then it is a good indication that you are burring your business logic inside the data access layer.

4.30. What is the Business Logic Layer?

I know for a fact that this is a question for most, but from the other hand by reading many articles I have become aware that not everyone agrees to what business logic actually is, and in many cases it's just the bridge in between the presentation layer and the data access layer with having nothing much, except taking from one and passing to the other. In some other cases, it is not even been well thought out, they just take the leftovers from the presentation layer and the data access layer then put them in another layer which automatically is called the business logic layer. However there are no god said things that cannot be changed in software world. You can change as and when you feel comfortable that the method you apply is flexible enough to support the growth of your system. There are many great ways, but be careful when selecting them, they can over complicating the simple system. It is a balance one needs to find with their experience.

As a general advice when you define business entities, you must decide how to map the data in your tables to correctly defined business entities. The business entities should meaningfully define considering various types of requirements and functioning of your system. It is recommended to identify the business entities to encapsulate the functional/ UI (User Interface) requirements of your application, rather than define a separate business entity for each table of your database. For example, if you want to combine data from couple of table to build a UI (User Interface) control (Web Control), implement that function in the Business Logic Layer with a business object that uses couple of data object to support with your complex business requirement.

4.31. What is Gang of Four (GoF) Design Patterns?

The Gang of Four (GoF) patterns are generally considered the foundation for all other patterns. They are categorized in three groups: Creational, Structural, and Behavioral. Here you will find information on these important patterns.

Creational Patterns

    • Abstract Factory Creates an instance of several families of classes
    • Builder Separates object construction from its representation
    • Factory Method Creates an instance of several derived classes
    • Prototype A fully initialized instance to be copied or cloned
    • Singleton A class of which only a single instance can exist

Structural Patterns

    • Adapter Match interfaces of different classes
    • Bridge Separates an object’s interface from its implementation
    • Composite A tree structure of simple and composite objects
    • Decorator Add responsibilities to objects dynamically
    • Facade A single class that represents an entire subsystem
    • Flyweight A fine-grained instance used for efficient sharing
    • Proxy An object representing another object

Behavioral Patterns

    • Chain of Resp. A way of passing a request between a chain of objects
    • Command Encapsulate a command request as an object
    • Interpreter A way to include language elements in a program
    • Iterator Sequentially access the elements of a collection
    • Mediator Defines simplified communication between classes
    • Memento Capture and restore an object's internal state
    • Observer A way of notifying change to a number of classes
    • State Alter an object's behavior when its state changes
    • Strategy Encapsulates an algorithm inside a class
    • Template Method Defer the exact steps of an algorithm to a subclass
    • Visitor Defines a new operation to a class without change

4.32. What is the difference between Abstract Factory and Builder design patterns?

The two design patterns are fundamentally different. However, when you learn them for the first time, you will see a confusing similarity. So that it will make harder for you to understand them. But if you continue to study eventually, you will get afraid of design patterns too. It is like infant phobia, once you get afraid at your early age, it stays with you forever. So the result would be that you never look back at design patterns again. Let me see whether I can solve this brain teaser for you.

In the image below, you have both design pattern listed in. I am trying to compare the two one on one to identify the similarities. If you observe the figure carefully, you will see an easily understandable color pattern (same color is used to mark the classes that are of similar kind).

Please follow up with the numbers in the image when reading the listing below.

Mark #1: Both patterns have used a generic class as the entry-class. The only difference is the name of the class. One pattern has named it as “Client”, while the other named it as “Director”.
Mark #2: Here again the difference is the class name. It is “AbstractFactory” for one and “Builder” for the other. Additionally both classes are of type abstract.
Mark #3: Once again both patterns have defined two generic (WindowsFactory & ConcreteBuilder) classes. They both have created by inheriting their respective abstract class.
Mark #4: Finally, both seem to produce some kind of a generic output.

Now, where are we? Aren’t they looking almost identical? So then why are we having two different patterns here?

Let’s compare the two again side by side for one last time, but this time, focusing on the differences.

  • Abstract Factory: Emphasizes a family of product objects (either simple or complex)
  • Builder: Focuses on constructing a complex object step by step
  • Abstract Factory: Focus on *what* is made
  • Builder: Focus on *how* it is made
  • Abstract Factory: Focus on defining many different types of *factories* to build many *products*, and it is not a one builder for just one product
  • Builder: Focus on building a one complex but one single *product*
  • Abstract Factory: Defers the choice of what concrete type of object to make until run time
  • Builder: Hide the logic/ operation of how to compile that complex object
  • Abstract Factory: *Every* method call creates and returns different objects
  • Builder: Only the *last* method call returns the object, while other calls partially build the object

Sometimes creational patterns are complementary: So you can join one or many patterns when you design your system. As an example builder can use one of the other patterns to implement which components get built or in another case Abstract Factory, Builder, and Prototype can use Singleton in their implementations. So the conclusion would be that the two design patterns exist to resolve two type of business problems, so even though they look similar, they are not.

I hope that this shed some light to resolve the puzzle. If you still don’t understand it, then this time it is not you, it has to be me and it is since that I don’t know how to explain it.

5. What is the Conclusion?

I don't think, that it is realistic trying to make a programming language be everything to everybody. The language becomes bloated, hard to learn, and hard to read if everything plus the kitchen sink is thrown in. In another word every language has their limitations. As system architect and designer we should be able to fully and more importantly correctly (this also mean that you shouldn’t use a ballistic missile to kill a fly or hire FBI to catch the fly) utilize the available tools and features to build usable, sustainable, maintainable and also very importantly expandable software systems, that fully utilize the feature of the language to bring a competitively advance system to their customers. In order to do it, the foundation of a system places a vital role. The design or the architecture of a software system is the foundation. It hold the system together, hence designing a system properly (this never mean an *over* desinging) is the key to the success. When you talk about designing a software system, the correct handling of OOP concept is very important. I have made the above article richer with idea but still kept it short so that one can learn/ remind all of important concept at a glance. Hope you all will enjoy reading it.

Finally, after reading all these, one may argue with me saying that anybody can write all these concept definitions but do I know how/ when to apply them in real world systems. So for them to see these concepts being applied in real world systems, please check the source code of the latest of my open-source project name Rocket Framework.

Note: For newbies Rocket Framework is going to be little too advance but check it, use it and review it if you have any questions/ criticisms around my design don't hesitate to shoot them here or there..

6. What you can refer:
